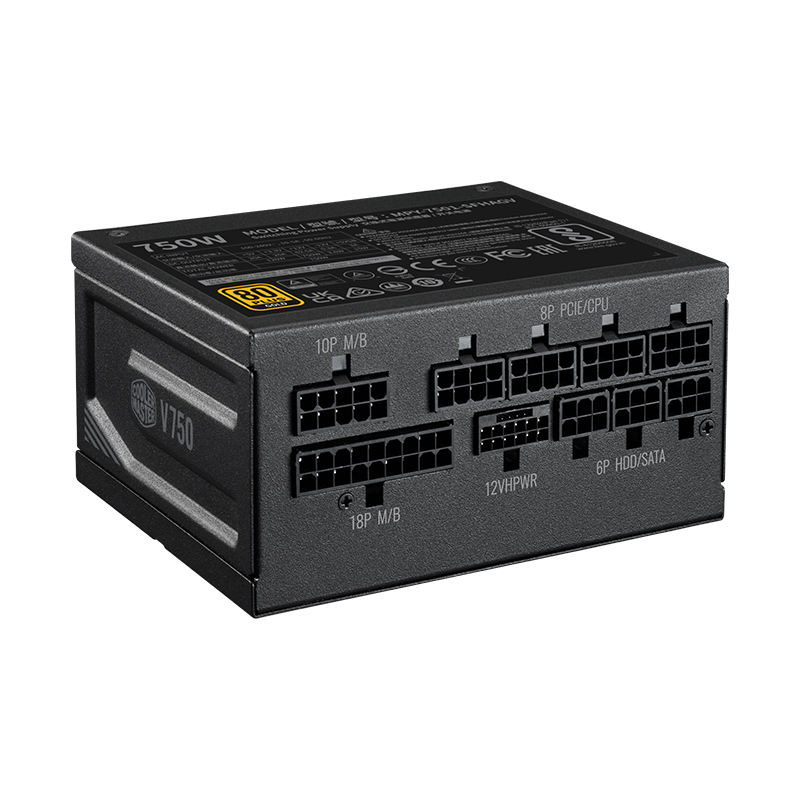

| Product Name | V SFX Gold 750 ATX 3.0 |
| Item Code | MPY-7501-SFHAGV |
| ATX Version | ATX3.0 & SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 100 x 125 x 63.5mm |

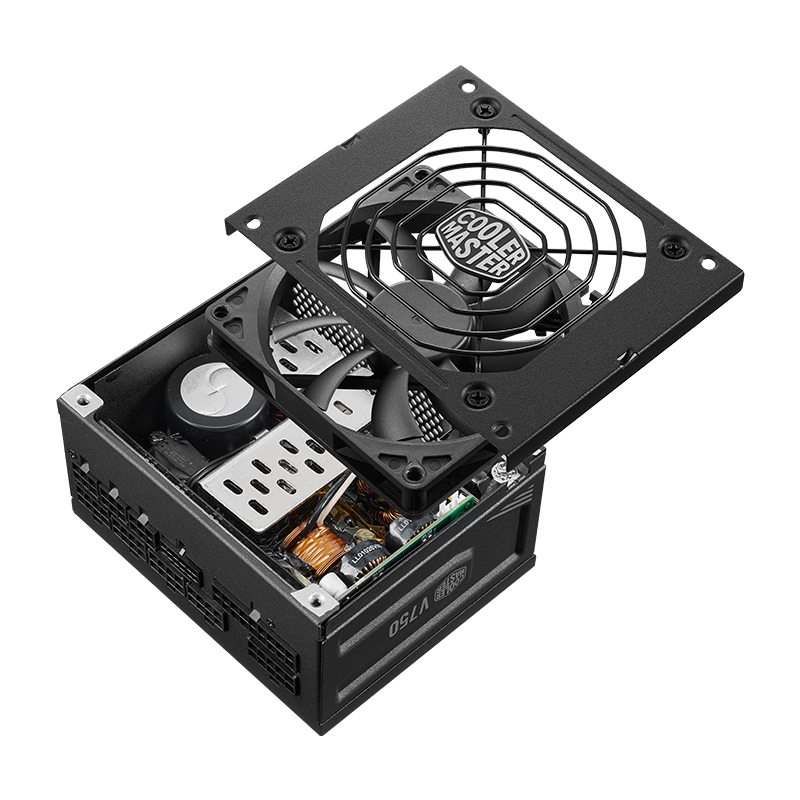

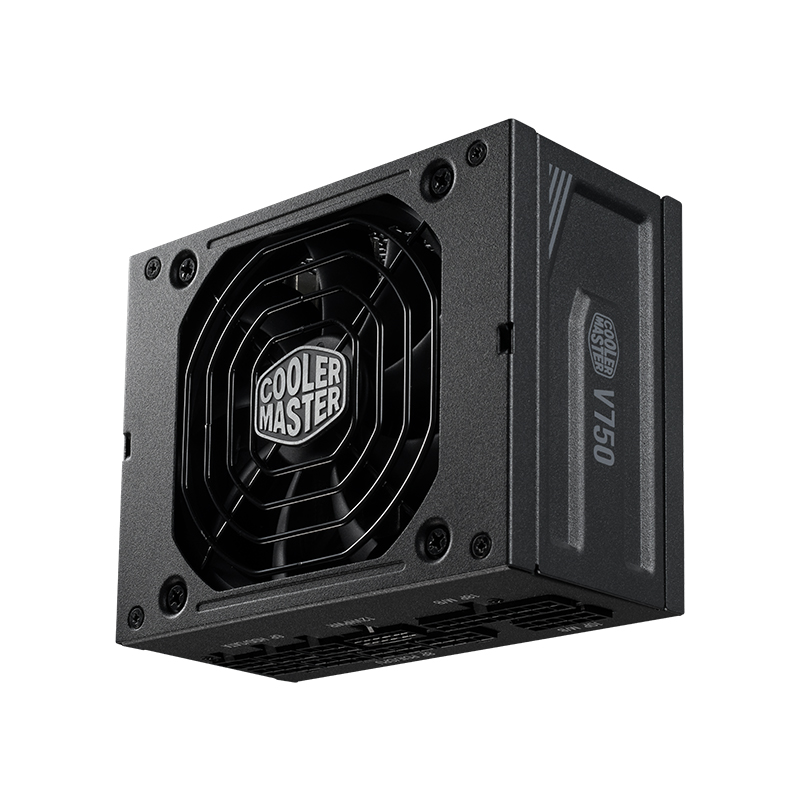

| Fan Size | 92mm |
| Fan Bearing | FDB |
| Efficiency | 90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0~50°C |
| Power Good Signal | 100-500ms |
| Hold Up Time | 16ms |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA |

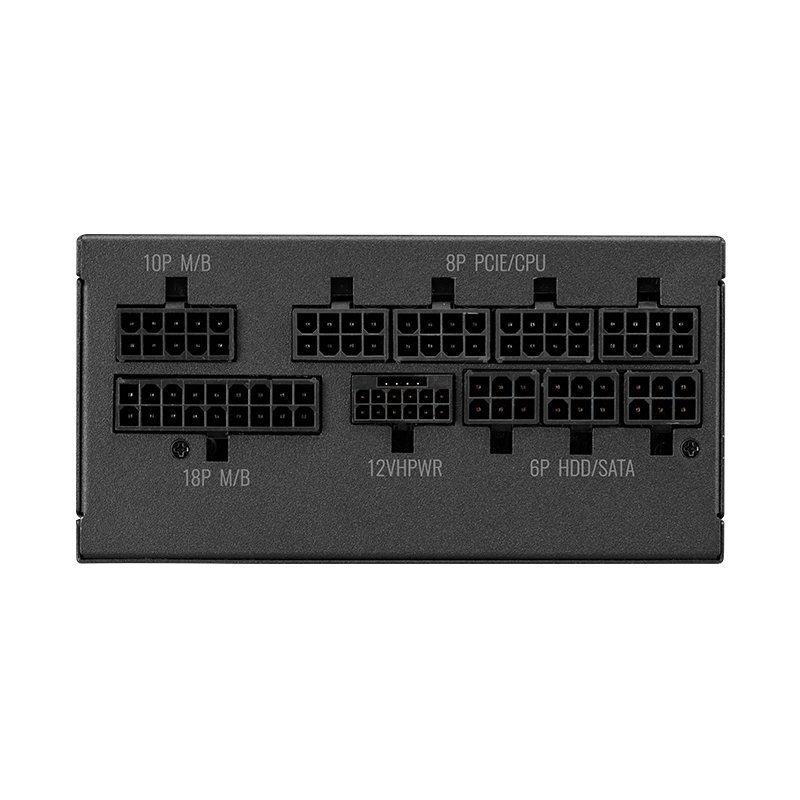

| Connectors | ATX 24 Pin | x1 = 1x (300mm) |
| EPS 4+4 Pin | x1 = 1x (450mm) |
| EPS 8 Pin | x1 = 1x (450mm) |
| SATA | x8 = 2x (100+115+115+115mm) |
| Peripheral 4 Pin | x4 = 1x (100+115+115+115mm) |
| PCI-e 6+2 Pin | x4 = 2x (400+120mm) |
| 12VHPWR | x1 = 1x (400mm) |
| Package Content(Asscessories) | Cable bag | x1 |
| Power cord | x1 |
| Zip ties | X7 |
| Velcro | x3 |
| Screw bag | x1 |
| ATX-ITX adapter bracket | x1 |
| Manual – User Guide | x1 |
| Cable Recommended Installation Guide | x1 |
